Functionality
Measuring Principle
Laser Optical Triangulation
Paste Type Supported
All (Pb or Pb Free)
Board Type Supported
All colors and All pad finishes
Offline Teaching
GerberWorks
SPC & Process Monitoring
SPCworks
System Diagnosis
SPImanager
Measurement
Camera System
High frame rate C-MOS sensor, 18μmx18μm pixel resolution
Scan Resolution
20μm
Lateral Resolution
18μm
Height Resolution
0.2μm
Max. Paste Height
1000μm
Max. Paste Size
20mmx20mm
Min. Paste Size
200μm x200μm
Min. Paste Pitch
150μm
Inspection Performance
Inspection Type
Height, Area, Volume, Offset, Bridge
Inspection Speed/ High Resolution
30 sq.cm/sec
Inspection Speed/ High Speed
60 sq.cm/sec
Load, Unload Time
1 sec
Height Repeatability
3 Sigma < 1.5 μm , on a certification target
Area Repeatability
3 Sigma < 3%, on a certification target
Volume Repeatability
3 Sigma < 3%, on a certification target
Height Accuracy
3μm , on a certification target
Gage R&R
Less than 10 %
Board Specification
Maximum Board Size
550mmx 510 mm
Minimum Board Size
50mmx 50 mm
Maximum Board Weight
1.3 kg
Maximum Board Warp
±5mm
Board Thickness
0.4mm to 4 mm
Board Edge Clearance (Top/Bottom)
2.5 / 3 mm
Underside Clearance
25 mm
Topside Clearance
15 mm
System Dimensions
Conveyor Speed Range
300mm - 500 mm/sec
Conveyor Height
890 mm- 940 mm
Flow Direction
Left Right or Right Left
Conveyor Reference Side
Selectable when ordering
Hardware System
Conveyor System
1 conveyors
X-Y-Z robot
Sensor head move in X-Y-Z Axis
Computer
Pentium IV 3.0GHz, 4GB Memory
Operating System
MS-Windows XP Professional
Display
17" LCD
Input
Mouse, Keyboard
Enclosure
Conforms to CE regulations
Interface
Data Input Type
Gerber (RS-274X)
Board Interface
SMEMA
Barcode (option)
1D, 2D
前往快查了解详情 >
社区
快查
商城
企业
标讯
设备展厅
登录 | 注册
通用设置
首页
设备展厅

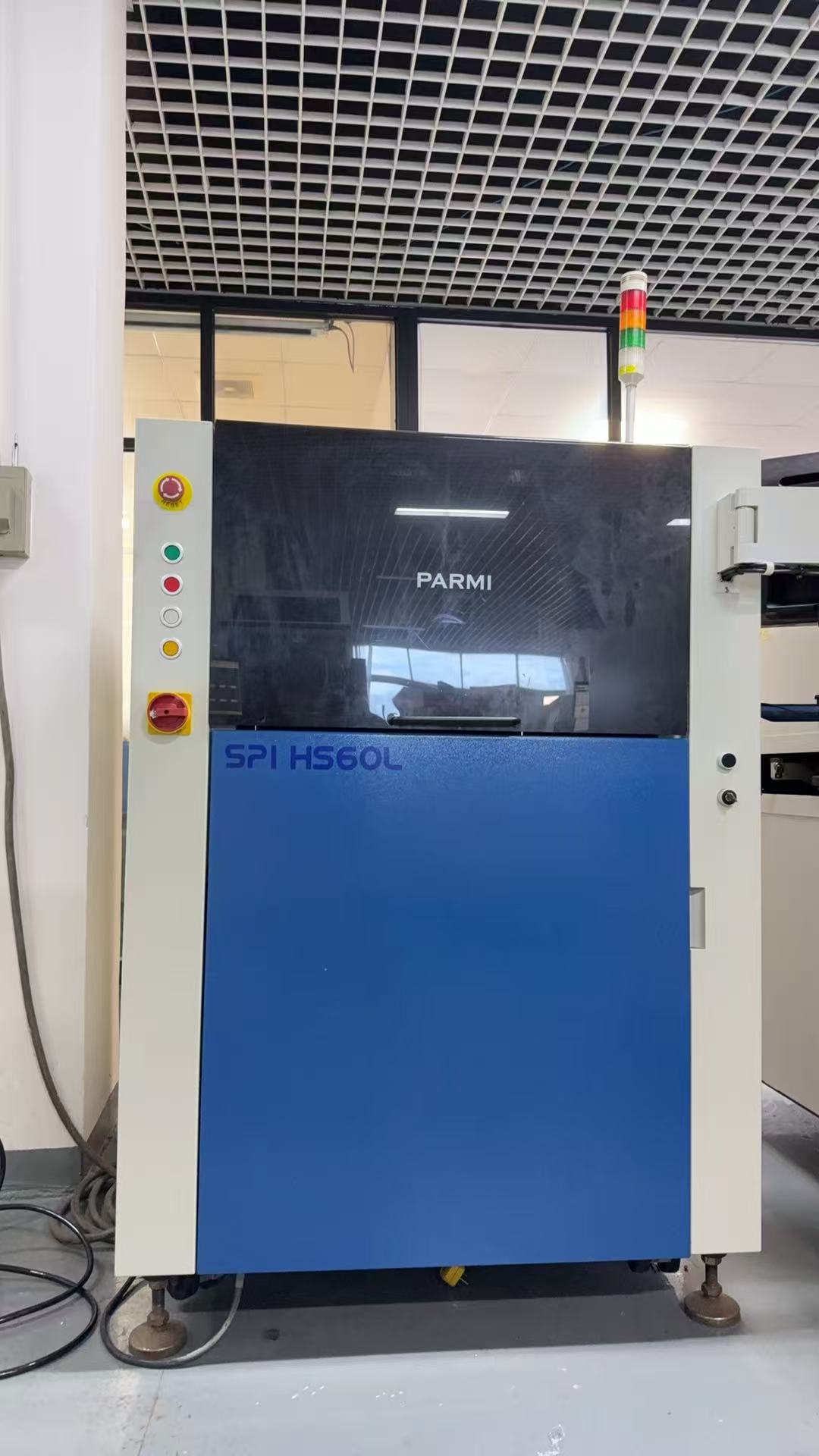

戴尔米PARMI（在线）SPI检测机HS 60 L
